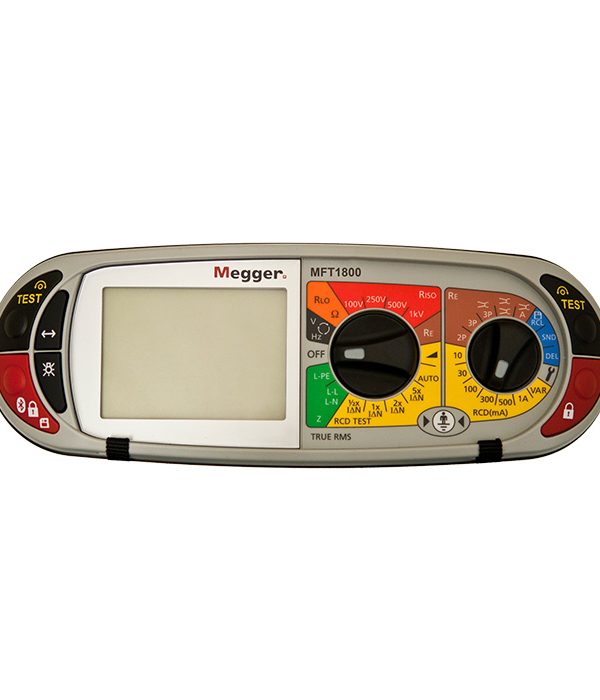

Megger MFT1800-MULTIFUNCTION INSTALLATION TESTER

The MFT1800 series is a range of 3 instruments for testing low-voltage electrical installations to the requirements of all IEC 60364-derived standards. They provide all the tests required to complete the necessary electrical certification for industrial, commercial, and domestic fixed wiring installations.

MFT1815 – The entry-level tester is offering CAT IV safety, 200 mA continuity, 2-wire non-trip loop testing with resistance and fault current display, frequency measurement, and the market’s largest, brightest and clearest display.

MFT1825 – The most popular of the range of testers offering all the benefits of the MFT1815, plus 3-pole and 2-pole earth electrode testing, 15 mA continuity testing, auto RCD testing, phase rotation, programmable and 3-phase RCD testing, and current measurement with the optional clamp.

MFT1835 – This advanced model bring the added benefit of Type B RCD testing, 3-pole earth electrode testing with attached rod technique, and stateless testing to a downloading and rechargeable instrument.

Megger MFT1800-MULTIFUNCTION INSTALLATION TESTER Specifications:

Loop test:

• Loop test Live to earth supply: 48 V ~ 280 V (45 Hz ~ 65 Hz)
• Live to live supply: 48 V ~ 500 V** (45 Hz ~ 65 Hz)
• L-N/L-L tests: ±5% ±3 digits
• Display range: 0.01 Ω ~ 999 Ω
• Live to earth PFC range: 20 kA
• Live-to-live PSCC range:20 kA

RCD tests:

• Supply up to 100 mA: 48 V ~ 480 V** (45 Hz ~ 65 Hz)
• Supply up to 1 A:48 V ~ 280 V
• RCD type: Type AC, A, SType B (pure dc)
• No trip test (1/2xI): –10% ~ –0%
• Trip test (1xI, 2xI & 5xI): +0% ~ +10%
• Ramp test:

• Touch voltage (0 ~ 253 V): +5% +15% ±0.5 V
• Trip time: ±1% ±1 ms
• Trip current: ±3%
• Step increments
• VAR (variable RCD selection): 10 mA ~ 50 mA 1 mA steps50 mA ~ 500 mA 5 mA steps500 mA ~ 1000 mA 10 mA steps
