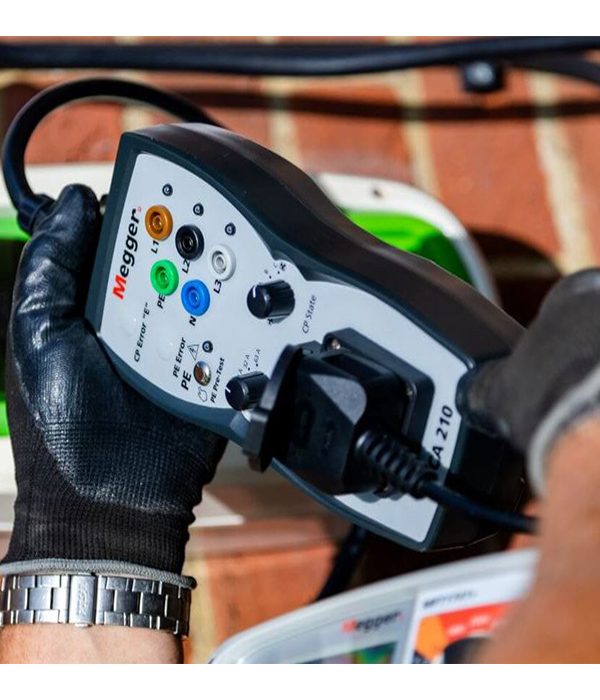

Megger EVCA210-ELECTRIC VEHICLE CHARGE-POINT ADAPTOR

The Megger EVCA210-UK Electric Vehicle Charge Point Adaptor is an easy-to-use instrument that offers an electrical contractor an extensive suite of tools designed for thoroughly testing Mode 3 AC Electric Vehicle charge points. Despite its compact size, when paired with the correct connectors the adaptor is capable of checking both the safety & function of all single or three-phase EV charge points. This instrument boasts an input voltage of up to 250V in a single-phase system, up to 430V in a three-phase system, and an input frequency of 50/60Hz.

Built to simulate the connection of an electric vehicle to an under-test charging point, the Megger EVCA210-UK adaptor is an EVSE tester that can determine if dangerous voltages are present on the PE. The intuitive user interface includes push buttons and a tactile rotary dial for streamlined testing. Alongside the PE pre-test button feature, a CP Error “E” simulation imitates an error on the control pilot circuit whilst a PE Error simulation (Earth Fault) feigns a disconnect of the PE circuit. The rotary switch alternates between providing Proximity Pilot (PP) State simulation and Control Pilot (CP) state simulation. Both tests ensure correct disconnection of the output of the charge point under examination.

Measurements on live conductors can be performed by the EVCA210-UK Electric Vehicle Charge Point Adaptor by utilizing either the front-mounted mains socket or the 4mm connection ports (L1, L2, L3, N, and PE). In addition, the tester comes complete with two additional CP signal terminals with which an engineer can measure the CP signal using an oscilloscope. For advanced compatibility, this EVSE tester is supplied with:

• Type 2 Plug for fixed cables with vehicle connectors or charging points featuring panel-mounted socket outlets
• Type 1 Plug for charging points with fixed cable and vehicle connector.

The lightweight and IP54-rated Megger EVCA210-UK Adaptor is sold with a bespoke soft carry case alongside 2 connection cables as standard. Rated CAT II 300V, the device conducts tests in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722 regulations. It is compliant with Low Voltage Directive LVD 2014/35 and in line with EC/EN 61010-1:2010 and IEC/EN 61010-2-030:2010 safety standards.

Megger EVCA210-ELECTRIC VEHICLE CHARGE-POINT ADAPTOR specifications:

• Input voltage: Up to 250 V (single phase system) / up to 430 V (three-phase system)
• Input Frequency: 50/60 Hz
• PE Pre-Test: Yes – Push Button
• CP Error “E” simulation: Push Button
• PP Simulation: NC, 13 A, 20 A, 32 A, 63 A
• CP States: A, B, C, D
• CP Error “E”: Yes
• PE Error (Earth fault): Yes
• Measuring Ports L1, L2, L3, N, and PE: Max. 250/430 V, CAT II 300 V, max. 10 A
• Mains socket: Max. 250 V, CAT II 300 V max. 10 A﹡
• CP Signal Test Ports: Approx. +/-12 V, CAT 0 (under normal conditions)
• Measurement category: CAT II 300 V
• Altitude above sea level: 2000 m max.
• Weight: Approx 780g
• IP-rating: IP54
• CE directive: Low Voltage Directive LVD 2014/35/EU
• Safety:
  – IEC/EN 61010-1:2010
  – IEC/EN 61010-2-030:2010
• Working temperature range: 0 to +40 °C
• Storage temperature range: -10 to +50 °C
• Reference humidity range: 10 to 60% relative humidity w/o condensation
• Working humidity range: 10 to 85% relative humidity w/o condensation
