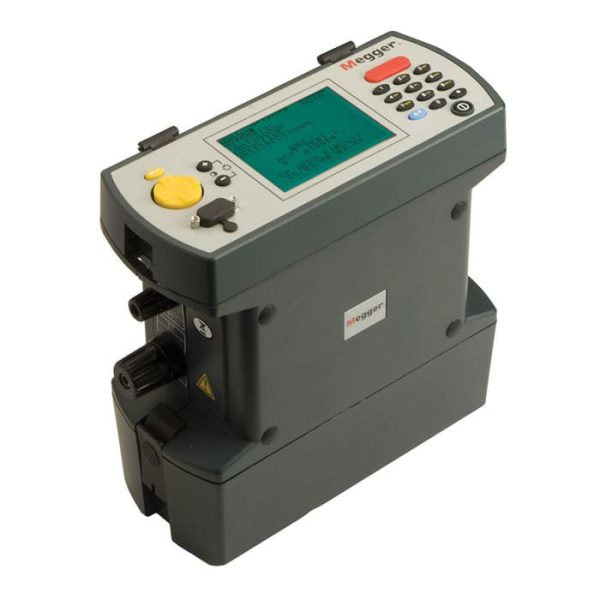

Megger Dlro10x Micro-ohmmeter

The MEGGER DUCTER™ DLRO10X bring new standards to low resistance measurement. It is a fully automatic instrument, selecting the most suitable test current, up to 10 A dc to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. For users who desire more control over the measurement process, DLRO 10X uses a menu system controlled by a two-axis paddle to allow manual selection of the test current. DLRO10X also adds real-time download of results and on-board storage for later download to a PC.

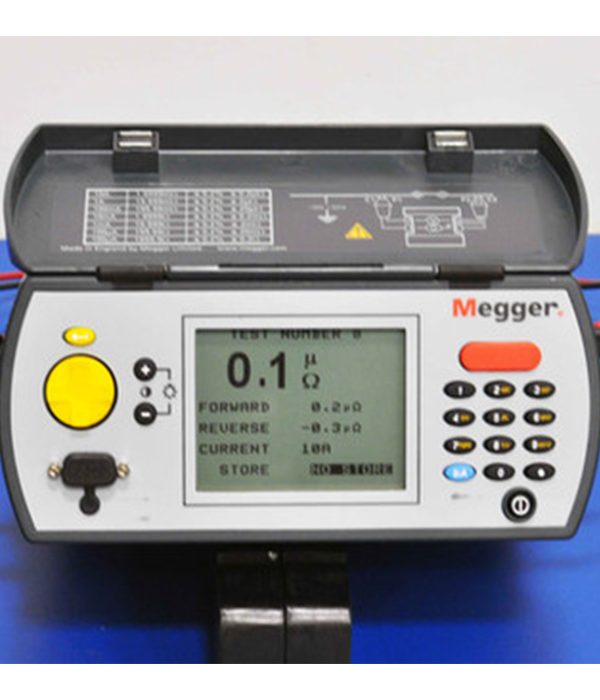

Both instruments are built into a strong, lightweight case that is equally at home in the field or in the laboratory. Light enough to be worn around the neck, they are small enough to be taken into areas which were previously too small to access. DLRO 10 uses a large, bright 4-1/2-digit LED display while DLRO 10X has a large, backlit LCD display.

Megger DLRO 10X specifications:

• Measurement mode: DLRO 10: Manual, Auto, Continuous, InductiveDLRO 10X: Manual, Auto, Continuous, Inductive, Undirectional
• Measurement control: DLRO 10: Fully AutomaticDLRO 10X: Fully Automatic/Manual
• Measurement speed: <3s for forward and reverse current and to display average
• DisplayMeasurement :DLRO10: 4 1/2 digit seven segment LEDDLRO10X: Large colour display
• Range and safety:DLRO10 LED indications
• Test method: Single cycle reversing d.c. ratiometric measurement – average result display.
• Test current accuracy: ±10%
• Test current stability:<10 ppm per second
• Lead resistance: Maximum 100 mΩ total for 10 A operation irrespective of battery condition.
• Voltmeter input impedance:>200 kΩ
