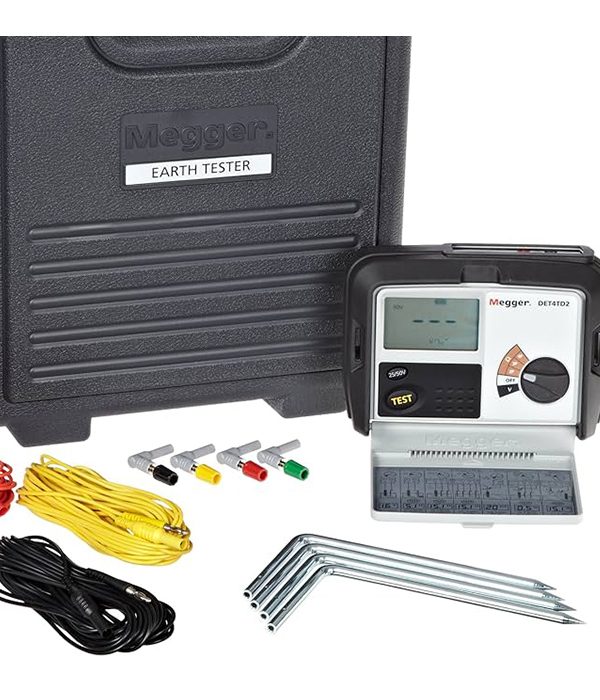

Megger DET4TD2-4-TERMINAL GROUND RESISTANCE AND SOIL RESISTIVITY TESTER

The DET4TD2 from Megger is an upgraded earth loop tester that can conduct 2, 3, and 4-point testing with a 25V or 50V output.

The Megger DET4TD2 is suitable for use both indoors and outdoors due to its IP54 classification (protection from dust and water jets), and tests are simply selected and initiated using the big rotary dial and test button. There is also a button on the front of the instrument that allows you to convert between 25 and 50V modes.

This earth tester will also automatically analyze and report the connection and status of any P and C spikes that are connected, displaying the results on the built-in LCD screen. The DET4TD2 can also detect ground voltage accurately thanks to a built-in voltmeter, and it can measure earth voltages up to 100V as well as resistance measurements from 0.01 to 20k (with resistance accuracy of 2%3 digits).

The Megger DET4TD2 is a non-rechargeable instrument that is powered by eight AA batteries. The DET4TR2, its sister tester, is rechargeable.

If a leadset with this rating is utilised, this product meets the criteria of IEC61010-1 100V CAT IV between terminal pairs. The DET4TD2 also meets KEMA K85B and EN61557 “Electrical safety in low voltage distribution systems up to 1000V a.c. and 1500V d.c. – Equipment for testing, measuring, or monitoring of protective measures.”

For more information and to view other EARTH RESISTANCE TESTER models, such as the Megger DET4TCR2, please click on the appropriate link

Megger DET4TD2-4-TERMINAL GROUND RESISTANCE AND SOIL RESISTIVITY TESTER specifications:

• Ingress protection: IP54
• C spike, P stake and noise check: Automatic
• Noise rejection: 40 V peak to peak
• 2-wire, 3-wire test, 4-wire test: Yes, no shorting links required
• Instrument output – Voltage: ±25 V or ±50 V at 128 Hz
• Instrument output – Current: 4.5 mA or 0.45 mA
• Resistance range: 0.01 Ω to 20 kΩ
• Earth voltage range: 0 – 100 V
• Resistance accuracy: 2% ±3 digits (2P/3P/4P measurements)
• Maximum probe resistance – Rp/Rc limit: 100 kΩ (50 V output voltage)
  Limits reduced to 50 kΩ for 25 V output voltage
  Limits reduced to 5 kΩ for 0.01 Ω resolution
• Ground voltage range: 0 to 100 V a.c.
• Ground voltage accuracy: 2%  ±2 V
• Display: 3 1⁄2 high contrast liquid crystal
• Battery type (DET4TD2): 8 off AA (LR6) cells
• Operating temperature range: -15 to +55 °C / 5 to 131 °F
• Storage temperature range: -40 to +70 °C / -40 to 158 °F
• Safety: Complies with the requirements of IEC61010-1, 100 V CAT IV between terminal pairs. ( The CAT IV 100 V is dependent on the use of a leadset of at least this rating, for example the optional two wire leadset part number 1001-858.)
• EMC: In accordance with IEC61326-1
• Standards Compliance: Complies with the requirements of KEMA K85B. Complies with the following parts of EN61557, Electrical safety in low voltage distribution systems up to 1000 V a.c. and 1500 V d.c. – Equipment for testing, measuring or monitoring of protective measures. Part 1 – General requirements, Part 5 – Resistance to earth
• Dimensions: 203 x 148 x 78 mm (8 x 5.8 x 3 inches)
• Weight: 1 kg (2.2lb)
• Part number: 1000-347
