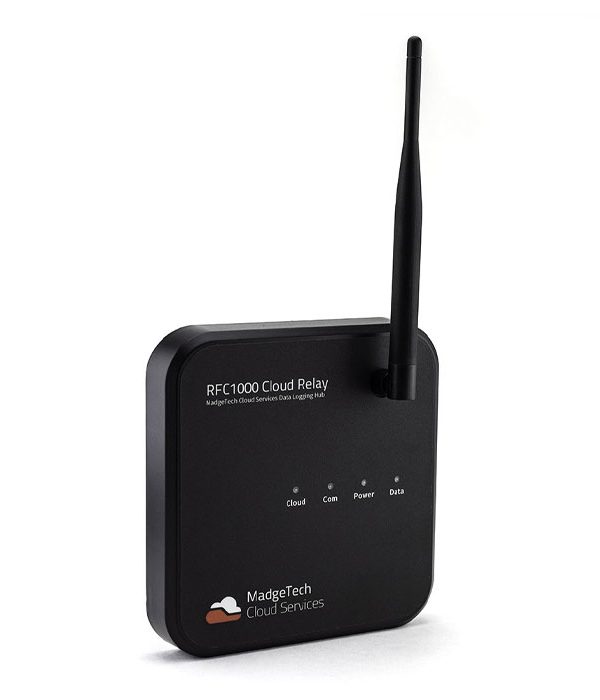

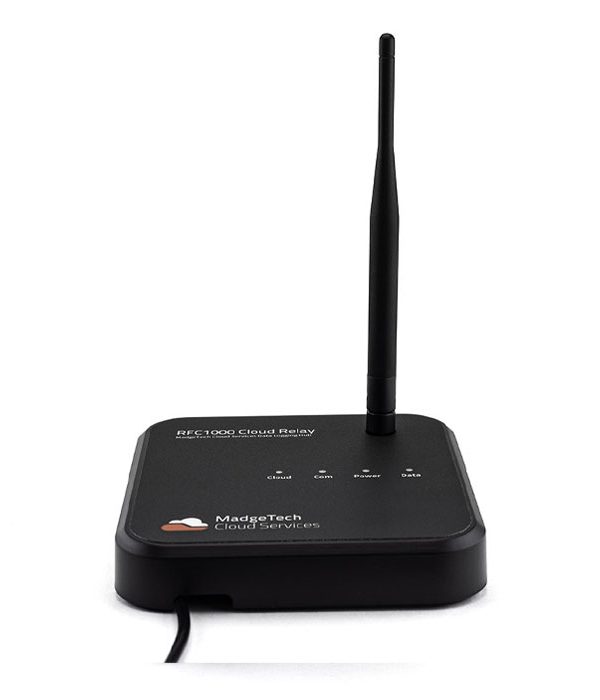

MadgeTech RFC1000 SUPER CLOUD RELAY

The RFC1000 Cloud Relay is a compact and versatile device that connects MadgeTech’s wireless recorders directly to the cloud, eliminating the need for a central PC.

Real-time data may be readily transported to the MadgeTech RFC1000 Cloud Relay, where it can be seen from any internet-capable device. The MadgeTech RFC1000 Cloud Relay’s straightforward design enables convenient integration into wireless data recording systems.

The MadgeTech RFC1000 Cloud Relay’s simple design enables seamless and simple wireless data logging system deployment integration. Featuring a 7-inch rotatable antenna, the RFC1000 Cloud Relay can be easily wall-mounted or placed on any flat, stable surface.

To communicate with the MadgeTech Cloud server, the RFC1000 Cloud Relay connects directly to an Ethernet connector for internet access. The number of RFC1000 Cloud Relays that can be linked to a MadgeTech Cloud account is unlimited, and each one can transmit data from as many as 64 wireless data loggers. In order to suit establishments and organizations of various sizes, from a single logger to dozens of locations, this offers the most scalable system possible.

The MadgeTech-RFC1000 Cloud Relay Introduction

To get more information please contact us.

MadgeTech-RFC1000 Features

• Transmits Data to the Cloud
•  Virtually Limitless Scalability
•  Compatible with the RFOT and
• 2000A Series of Data Loggers
•  Configurable Alerts & Notifications
•  Multiple LED Indicators
•  Quick and Easy Set-Up
•  Download Data to CSV

RFC1000 Applications

• Facility Monitoring
•  General Wireless Data Logging
•  Meat Cooking, Cooling & Storage
•  Medical Storage
•  Laboratory Monitoring
•  Blood Banks
•  Hospitals
•  Warehouses

MadgeTech-RFC1000 Specifications

• General

• LED Indicators: Red, Amber & Green
• Material: ABS Plastic (body), PVC Plastic (antenna)
• Dimensions: Body: 6.0 in x 6.24 in x 1.15 in (152.2 mm x 158.6 mm x 29.3 mm) Antenna: 7.2 in (183 mm)
• IP Rating: IP40
• Operating Environment: -20 °C to +85 °C, 0 to 95 %RH non-condensed
• Approvals: FCC ID:OA3MRF24J40MC, IC#: 7693A-24J40MC

• Wireless

• RF Carrier Frequency: 2.405 GHz – 2.475 GHz
• Typical outdoors Line of sight To RFC1000: 4000 ft max. / To Data Logger: 2000 ft max.
• Typical Indoors line of sight To RFC1000: 1000 ft max. / To Data Logger: 500 ft max.

MadgeTech RFC1000 CLOUD RELAY

RFC1000 Accessories

• USB Universal Power Adapter
