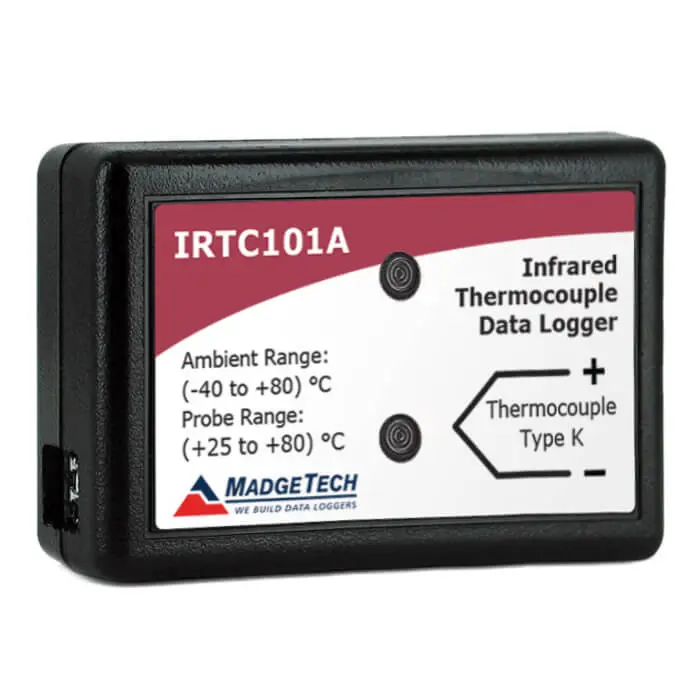

MadgeTech IRTC101A Infrared Thermocouple Data Logger

MadgeTech IRTC101A is an infrared thermocouple temperature data logger. This device offers non-contact temperature measurements, making it the ideal solution for monitoring surface temperatures and moving objects.

IRTC101A is an infrared thermocouple temperature data logger. This device offers non-contact temperature measurements, making it the ideal solution for monitoring surface temperatures and moving objects.

The IRTC101A is compatible with the latest MadgeTech 4 software, making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data are provided for analysis and can be viewed as customizable engineering units.

To get exact specifications please check the datasheet.

To get more information please contact us.

MadgeTech IRTC101A Features

• 10-Year Battery Life
•  Wide Temperature Range
•  Uses Thermocouple Type K (contact sales for other types)
•  High-Speed Download
•  Real-time Operation
•  Low Cost
•  Programmable Start Time
•  Miniature Size

MadgeTech IRTC101A Specifications

• General

• Memory: 838,041 readings (all channels enabled)
• Reading Rate: 1 reading every second up to 1 reading every 24 hours
• Baud Rate: 115,200
• Cold Junction Compensation: Automatic
• Channels: 1 Internal & 1 Remote
• Battery Life: 10 years typical (at a 15-minute reading rate)

• Temperature

• Internal Channel Temperature Sensor: Semiconductor
• Internal Channel Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
• Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)

Accessories

• IFC200
• LTC-7PN Lithium Battery
• Waterbox101A
