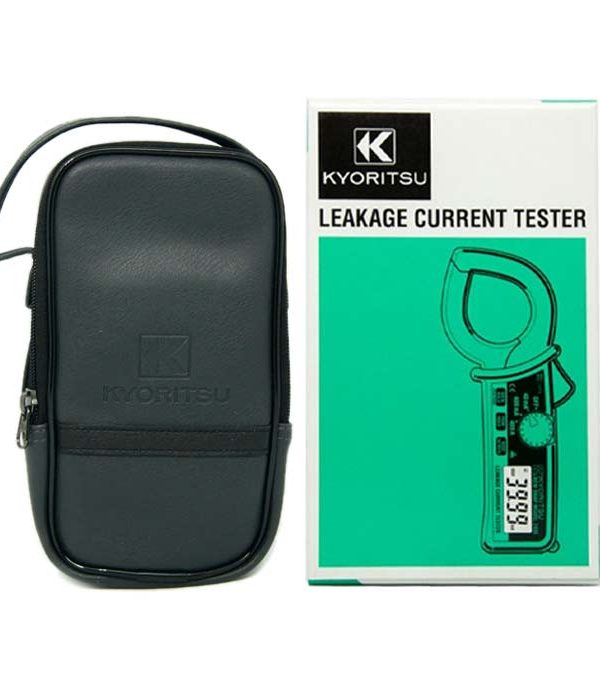

Kyoritsu Leakage Clamp Meter MODEL 2432

The Kyoritsu 2432 is a high-sensitivity 100A AC clamp meter, capable of measuring small leakage currents. With its 40mm jaw, the Kyoritsu 2432 is ideal for detecting wire faults and insulation breakdown.

The Kew 2432 has a frequency selector switch to reduce the impact of harmonics and can measure an AC current of up to 100A in three bands (4/40mA/100A). In particular, at low currents, this gives a more precise measurement. Peak hold is another feature of the Kyoritsu 2432 that enables peak value measurements.

Kyoritsu 2432 key features:

• High Sensitive Model
• Frequency Selector Switch to eliminate the effect of harmonics.
• Three AC current ranges:4mA/40mA/100A.
• Resolution 0.001mA.

Related Products

• PCE-DC1
• Kyoritsu 2434
• Kyoritsu 2433R

more information

MME-AE is a renowned importer and distributor of Kyoritsu leakage current TESTER in Dubai and various other countries, providing the most competitive prices in the market. For purchasing the Kyoritsu Clamp Meter and obtaining detailed pricing information, we encourage you to get in touch with our knowledgeable experts at MME-AE.

Kyoritsu 2432 specifications:

• AC A (50/60Hz): 4/40mA/100A ±1%rdg±5dgt (4/40mA) ±1%rdg±5dgt (0 – 80A) ±5%rdg (80.1 – 100A)
• AC A (WIDE): 4/40mA/100A ±1%rdg±5dgt [50/60Hz], ±2.5%rdg±10dgt [20Hz – 1kHz] (4/40mA) ±1%rdg±5dgt [50/60Hz], ±2.5%rdg±10dgt [40Hz – 1kHz] (0 – 80A) ±5%rdg [50/60Hz], ±10%rdg [40Hz – 1kHz] (80.1 – 100A)
• Maximum circuit voltage: 600V AC/DC (between line/neutral) and 300V AC/DC (against Earth)
• Conductor size: Ø40mm max.
• Frequency response: 20Hz – 1kHz (40Hz – 1kHz:100A)
• Effect of External Stray Magnetic Field: 2mA AC approx. in proximity to a 15mm-dia conductor carrying 100A AC
• Safety Standard: IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-032
