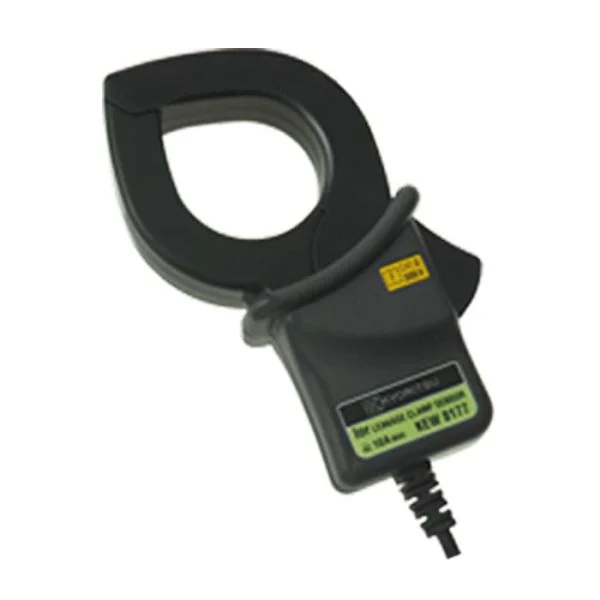

Kyoritsu Ior Leakage current Clamp sensors KEW 8177
Kyoritsu Ior Leakage current Clamp sensors KEW 8177 key features:
- Wire size: Ø68mm
- Rated current: 10A (rms) AC (14.1Apeak)
- Output voltage: 500mV AC / 10A AC
- Accuracy: ± 1.0% rdg ± 0.025mV (40Hz – 70Hz), ± 4.0% rdg ± 0.025mV (30Hz – 5kHz, with output greater than or equal to 100mA)
Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)SKU:4996
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
AED 970 Original price was: AED 970.AED 802Current price is: AED 802. (excl.VAT)
12People watching this product now!
Kyoritsu Ior Leakage current Clamp sensors KEW 8177
For use with the Ior logger.
Kyoritsu Ior Leakage current Clamp sensors KEW 8177 specifications:
- Conductor Size: Ø1.6″ (40 mm)
- Rated Current: 10 A (rms) AC (14.1 Apeak)
- Output Voltage: 500 mV AC/10 A AC
- Accuracy: ±1% rdg±0.025 mV (40 to 70 Hz)
±4% rdg±0.025 mV (30 Hz to 5 kHz, with inputs of 100 mA or more) - Phase Shift: Within 1% (45 to 70 Hz while combining with KEW 5050, under the input of 10% or more of KEW 5050 leakage current range)
- Cable Length: 9.84′ (3 m)
- Output Connector: MINI DIN 6PIN
- Applicable Standards: IEC 61010-1, IEC 61010-2-032 CAT III 300V Pollution degree 2, IEC 61326-1
- Operating Temperature & Humidity Range: 14 to 122°F (-10 to 50°C) relative humidity 85% or less (no condensation)
- Weight: 0.68 lb (308.4 g)
