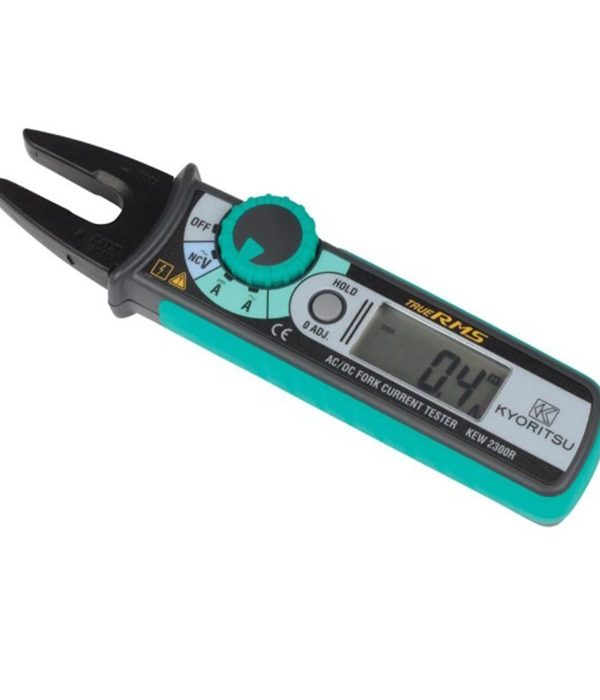

KYORITSU Fork Current Tester MODEL 2300R

The Kyoritsu 2300R tiny fork current tester is a small true RMS AC/DC current clamp capable of measuring up to 100 amps. Because of the fork-style construction of this current clamp, it is not essential to seal the loop around a conductor. This makes it simple to measure in small places. The clamp has an auditory warning that alerts the user if an AC voltage is present. The 2300R also has auto power-off, zero-adjust, and data-hold capabilities.

The KEW FORK 2300R can be utilized in packed connection boxes when wires are too short to clamp with a typical clamp meter and space is restricted.

Application of ExStik Extech EC510 waterproof

true rms acdc fork current

True RMS reading on the kyoritsu clamp meter 2300R is a crucial component for precise measurement. The non-contact voltage feature warns the user of the presence of AC voltage by emitting an auditory sound. Using the zero adjust feature, you may quickly set the DC current range to ze

tester additional information related products

Kyoritsu 2056 R

EXTECH 380940 True RMS AC/DC Watt Clamp-on

EXTECH MA260 True RMS 200A AC Open Jaw Clamp Meter

Kyoritsu DC Milliamp Clamp Logger KEW 2510

you can seek more info by checking kyoritsu 2300r manual and datasheet.

rms acdc fork current tester MODEL 2300R specifications:

• Current measurement: AC A 0 to 100.0A ±2.0%rdg±5dgt (50/60Hz)
  DC A 0 to ±100.0A ±2.0%rdg±5dgt
• Crest factor: 2.5
• Non contact voltage: Detect AC voltage without contacting with socket wire
  During voltage detection, “Hi” flashes and a buzzer sounds
• Maximum digit: 1,049
• Conductor size: Max Ø10mm
• Safety Standard: IEC 61010-1 CAT III 300V Pollution degree 2
• Power source: R03 (AAA) × 2 (Auto power off: approx.10 minutes)
  *Continuous measuring time: AC A approx. 46 hours DC A approx. 52 hours
