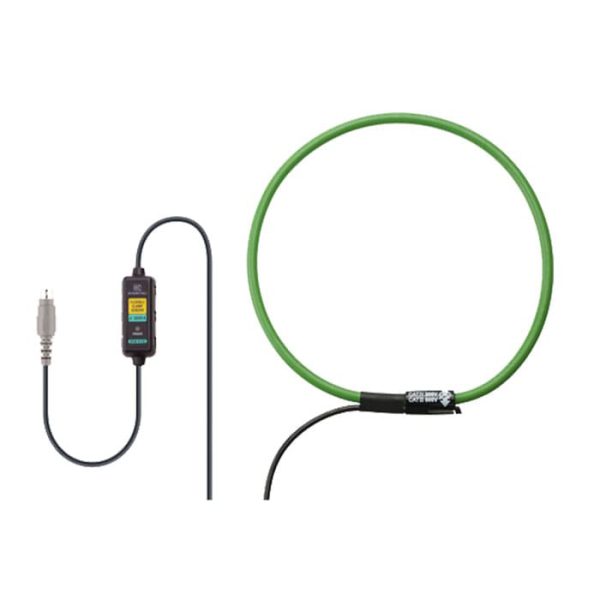

Kyoritsu Flexible Clamp Sensor KEW 8133

For use with AC current measurements of up to 3000 A.

Kyoritsu Flexible Clamp Sensor KEW 8133 specifications:

• Applicable model:5050, 6305, 6315
• Conductor size:max.Ø170mm
• Rated current: AC 3000A
• Output voltage:AC 500mV / 3000A (AC 0.167mV/A)
• Accuracy: ±1.0%rdg±0.5mV (45Hz – 65Hz)
  ±1.5%rdg±0.5mV (40Hz – 1kHz)
• Phase shift:within ±2.0° (45Hz – 65Hz)
  within ±3.0° (40Hz – 1kHz)
• Cable length: Approx. 3m
• Output connector: MINI DIN 6PIN
• Output impedance: 100Ω or less
• Applicable standards: IEC 61010-1,
  IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2,
  IEC 61326
• Operating temperature & humidity range: -10 – 50°C, relative humidity 85% or less (no condensation)
