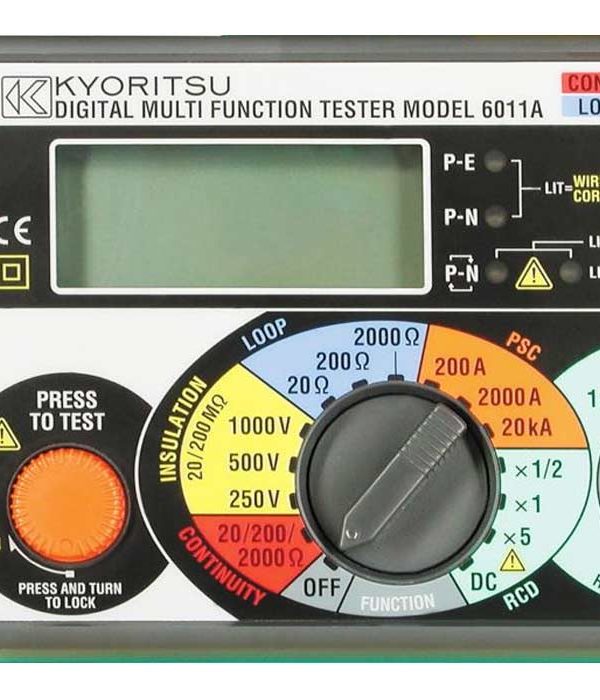

Kyoritsu Multi Function Testers MODEL 6011A

Kyoritsu 6011A is a versatile and reliable multifunction tester designed to test electrical installations according to various international standards. Capable of doing prospective short circuit current and RCD trip testing in full compliance with IEC61557.

to buy kyoritsu 6011a or kyoritsu 6011a price and kyoritsu 6011a manual please visit mme-ae website.

Kyoritsu 6011 A key features

• Complies with IEC 61557
• Designed for IP 54 Rating
• Live circuit and wiring connection check LEDs
• Triple ranges insulation tests at 250, 500 and 1000V
• Triple range loop and PSC tests 15mA test current at 200Ω/2000Ω range(No RCD Trip)
• Phase angle selection on RCD ranges
• Polarity switch for continuity tests
• Auto-null facility for continuity tests
• Earth probe for loop impedance testing on extraneous metalwork
• Contact Voltage Reading
• Test of a large kind of RCDs: Standard, Selective, AC, and A
  (DC sensitive breakers)

more information

to download the kyoritsu multifunction tester 6011a manual click on the manual tab also for kyoritsu multimeters,kyoritsu insulation tester price, and kyoritsu 6010b manual visit our website.

Other kyoritsu products are Kew 6205, Kew 8031, kew 6305-01.

Kyoritsu 6011 A specifications

• Continuity Testing:

• Measuring Ranges: 20/200/2000Ω (Autoranging)
• Open Circuit Voltage: >6V
• Short Circuit Current: >200mA DC
• Accuracy: ±(1.5%rdg+3dgt)

• Insulation Testing:

• Measuring Ranges: 20/200MΩ (Autoranging)
• Test Voltage: 250V 500V 1000V DC
• Output Voltage on Open Circuit: 250V+40%-0%
  500V+30%-0%
  1000V+20%-0%

• Loop Impedance Testing:

• Rated Voltage: 230V AC +10%-15% [50Hz]
• Voltage Measuring Range: 100 – 250V AC [50Hz]
• Nominal Test Current: 25A (20Ω range) 15mA (200Ω range) 15mA (2000Ω range)
• Accuracy: 20Ω range ±(3%rdg +4dgt)
  200Ω range ±(3%rdg +8dgt)
  2000Ω range ±(3%rdg +4dgt)

• PSC Testing

• Rated Voltage: 230V AC +10%-15% [50Hz]
• PSC Ranges: 200A (15mA Test Current)
  2000A (25A Test Current)
  20kA (25A Test Current)

• RCD Testing:

• Rated Voltage: 230V AC +10%-15% [50Hz]
• Trip Current Settings: RCD × 1/2 : 10,30,100,300,500,1000mA
  RCD × 1 : 10,30,100,300,500,1000mA
  RCD × 5 : 10,30,100,300mA (on × 5 ranges max current 1A)
