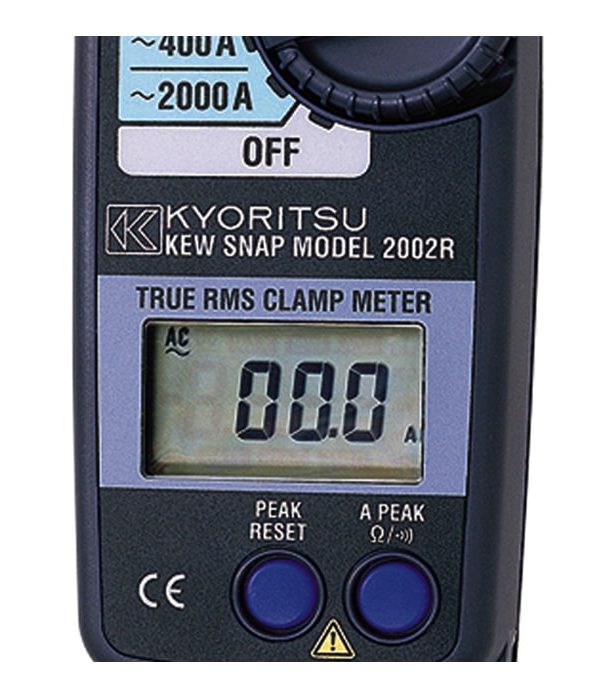

Kyoritsu 2002R AC Clamp Meter

The Kyoritsu 2002R is a professional digital clamp meter, with the ability to measure large currents up to 2000A AC. Featuring True RMS measurement, the 2002R provides accurate current readings even with non-sinusoidal waveforms.

The Kyoritsu 2002R has a flexible jaw with a teardrop shape of 55mm that enables testing of big cables. In order to record current variations, the 2002R also offers an output to a chart recorder and a broad frequency range of 40Hz to 1kHZ (current measuring range of 0–1500A).

The clamp meter also has safety features built in, such as a jaw guard, a terminal cover to prevent improper terminal use, and double insulation protection.

Various functions are also present including the data hold function for low lit conditions, a peak hold function to measure current variations as small as 10 milliseconds and a sleep feature to conserve battery power.

Kyoritsu 2002R AC Clamp Meter Specifications :

• AC A  : 400A (0 – 400A)
  ±1.5%rdg±3dgt [45 – 65Hz]
  ±2.5%rdg±3dgt [40Hz – 1kHz]
  2000A (0 – 1500A)
  ±2%rdg±5dgt [45 – 65Hz]
  ±3%rdg±5dgt [40Hz – 1kHz]
  2000A (1501 – 2000A)
  ±4%rdg [50/60Hz]
• AC V :  40/400/750V
  ±1%rdg±2dgt [45 – 65Hz]
  ±1.5%rdg±3dgt [40Hz – 1kHz]
• DC V : 40/400/1000V ±1%rdg±2dgt
• Ω  : 400Ω/4k/40k/400kΩ ±1.5%rdg±2dgt
• Conductor size :  Ø55mm max.
• Frequency response : 40Hz – 1kHz
• Output :  Recorder ; DC400mV against AC400A , DC200mV against AC2000A
• Power source :  R6 (AA) (1.5V) × 2
• Dimensions : 247(L) × 105(W) × 49(D)mm
• Weight : 470g approx.
