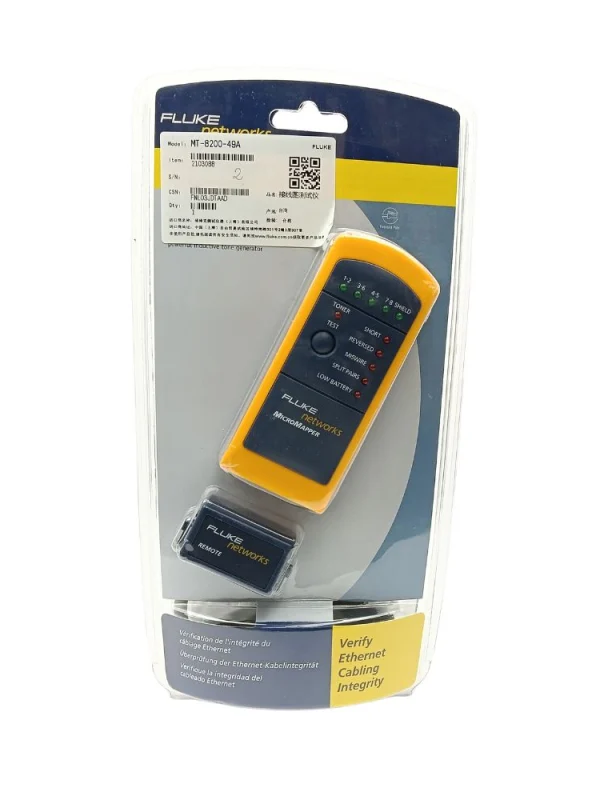

Fluke Networks MT8200 49A MicroMapper Wiremap Tester

The MicroMapper™ MT-8200-49A is a portable cable tester that easily verifies the integrity of twisted pair Ethernet cables. Test for opens, shorts, reverses, crossed, and split pairs, and look for existing faults in your cable. Trace hidden cables in ceilings, walls, floors, and bundles.

Fluke Networks MT-8200-49A Copper Tester

Whether you’re an electrical contractor, home networking professional, datacoms specialist, or a network/IT administrator, Fluke Networks’ family of powerful Voice/Data/Voice (VDV) verification and troubleshooting tools can help you verify your work while providing quality installation.

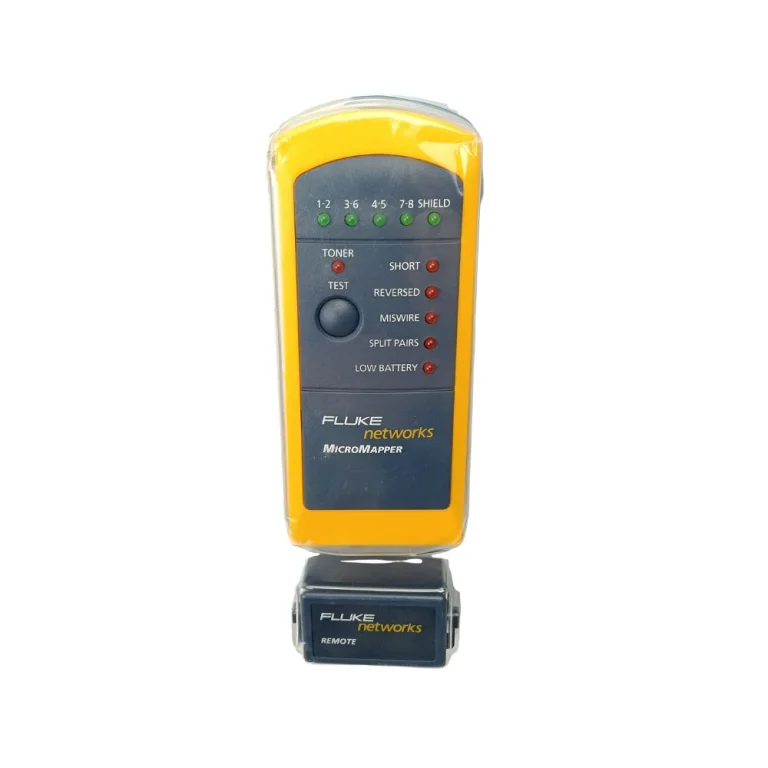

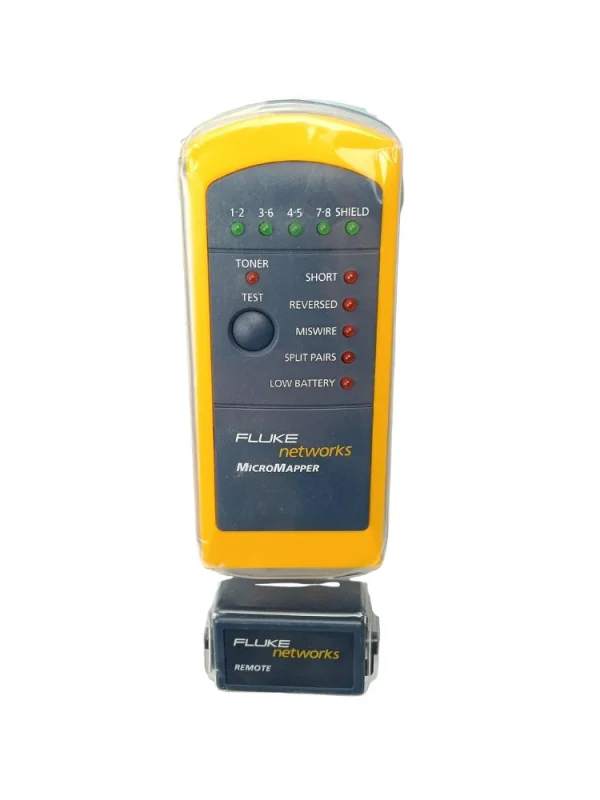

The MicroMapper is a small, handheld cable tester that allows network professionals to quickly and easily verify the integrity of twisted pair Ethernet cables. Test twisted pair cabling quickly and easily

The MicroMapper cable tester tests twisted pair cabling quickly and easily, giving you insight into open, shorted, crossed, swapped, and split pairs. Simply press the TEST button and MicroMapper will automatically scan each pair of wires for any faults present in your cable.

MicroMapper’s built-in tone generator works with the IntelliTone Pro probe or any other analog probe, allowing you to trace cables through walls, floors, and ceilings. Auto sleep mode reduces battery drain when not in use. LEDs on the cable tester detect faults in the existing cable and indicate a low battery.

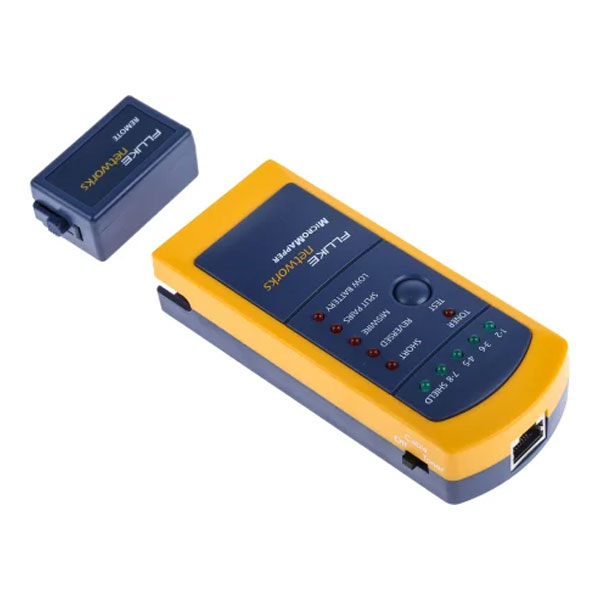

The MicroMapper Cable Tester also includes a remote unit that allows one person to test installed cables or patch cords.

Features of the Fluke Networks MT-8200-49A

• SmartTone Technology: The MT-8200-49A features IntelliTone digital and analog signaling which allows for precise wire identification even in environments crowded with data, voice, and video cables.
• Dual Mode: It can switch between digital and analog modes to optimize testing for virtually any application. The digital mode is particularly useful for locating and isolating high-grade data cabling in complex networks.
• Enhanced Signal Clarity: The digital toning technology significantly reduces noise and false signals, providing a clear, unmistakable tone.
• LED Display: The LED display shows signal strength, which helps in quickly and accurately pinpointing the exact location of hidden cables.
• Ergonomic Design: Designed for one-handed use and robust enough for harsh industrial environments, this device is both durable and user-friendly.

Applications of the MT-8200-49A

• Wire Tracing: Essential for tracing wires in system racks and detecting where specific cables are routed in walls and ceilings.
• Cable Identification: Quickly and accurately determines the termination point of a cable among numerous cables, reducing downtime and improving productivity.
• Service Detection: Capable of verifying active network services over copper wiring, making it invaluable for initial installation checks and troubleshooting.
• Tone and Probe Methodology: Uses a tone generator and a probe to determine where cables are routed and where they terminate, essential for maintenance and installations.

Benefits for Network Technicians

1. Efficiency: The dual-mode operation speeds up the identification process, making it easier to work in both new and existing installations.
2. Accuracy: Provides highly accurate cable tracing in complex environments filled with multiple signal interferences.
3. Versatility: Works on any twisted pair cabling (e.g., Cat 5e, Cat 6, Cat 6a), as well as other types of cabling systems, including coaxial and basic electrical circuits.
4. Convenience: Its portability and ease of use allow for quick diagnostics and problem-solving on the go.

fluke mt-8200-49a specifications:

• Dimensions: 4.93 x 2.05 x 1.18 ft (125 x 52 x 30 m)
• Batteries: ‎ 4 AA batteries are required. (included)
• Testing twisted pair cables over 656 ft (200 m) in length
• Weight:0.28 lbs (130 g), Minimum length for split pair detection is 2 ft (0.6m)
