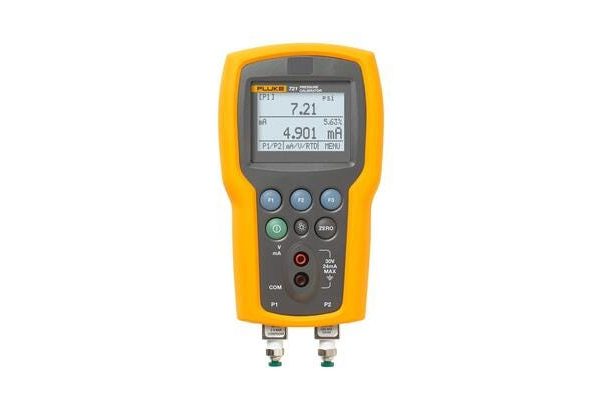

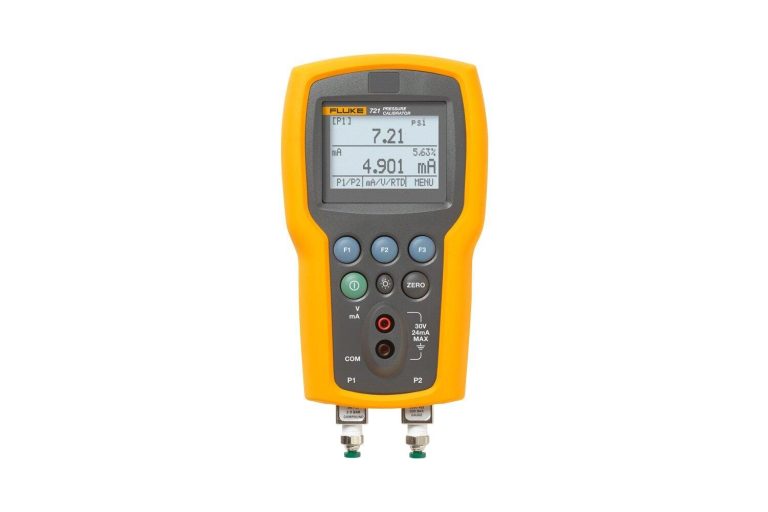

Fluke 721 Pressure Calibration Instruments

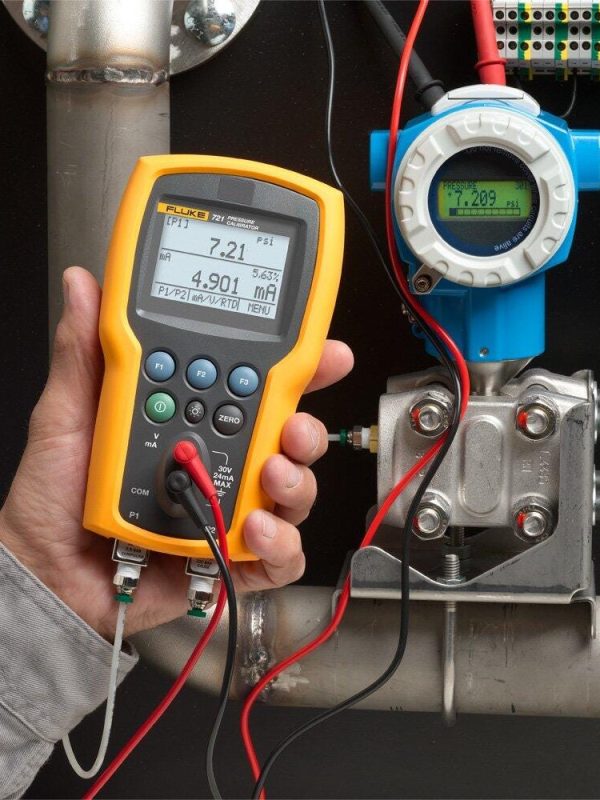

The Fluke 721 Precision Pressure Calibrator is the ideal tool for gas custody transfer applications. It features dual isolated pressure sensors to allow you to take simultaneous static and differential pressure measurements with a single tool.

And it can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low-pressure sensor and then adding any of seven high-pressure ranges: 100, 300, 500, 1000, 1500, 3000, or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).

Other useful features:

• Measures up to 30 V DC, check 24 V loop power supplies
• Extends pressure measurement range with connection to external 750P
• 750 series pressure modules (50 ranges)
• Provides a large backlit graphic display that can show up to three inputs simultaneously
• Stores five instrument setups for recall

Fluke 721 Pressure Calibration Instruments specifications:

• General Specifications:

• Instrument setup recall: Last used on power-up
• Environmental: Operating temperature -10°C to +50°C
  Storage temperature (without batteries) -20°C to +60°C
• Altitude: 2,000 m
• Ingress protection: IP-40
• Power requirements: 6.0 V DC
• Battery life: >35 hours, typical usage
• Batteries required: (4) Standard AA cells
• Dimensions (H x W x D): 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
• Weight: 03539 kg (1 lb 3 oz)
• Connectors/ports pressure: Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe

• Temperature Effect:

• No effect on accuracy on all functions from 15°C to 35°C
• Add ±0.002% F.S./°C for temps outside of 15°C to 35°C

• Available Pressure Engineering Units: psi, bar, mbar, kPa, kgcm2, cmH₂O @ 4°C, cmH₂O @ 20°C, mH₂O @ 4°C, mH₂O @ 20°C, inH₂O @ 4°C, inH₂O @ 20°C, inH₂O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH₂O @ 4°C, ftH₂O @ 20°C, ftH₂O @ 60°F

Accessories

• Fluke 1603
• Fluke 721 1601
• Fluke 721 3630
