Fluke 1577 Insulation Multimeter
Specifications Of
Fluke 1577 Insulation Multimeter
Specifications of
-6%
Fluke 1577 Insulation Multimeter
Specifications Of
Fluke 1577 Insulation Multimeter
Specifications of

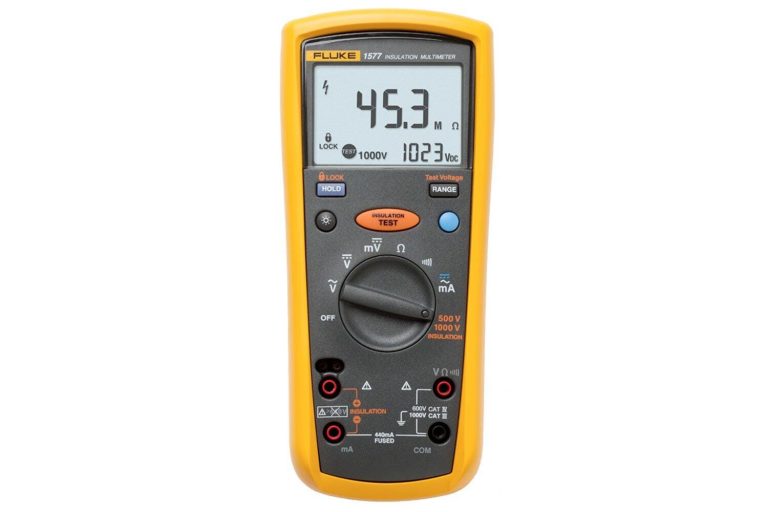

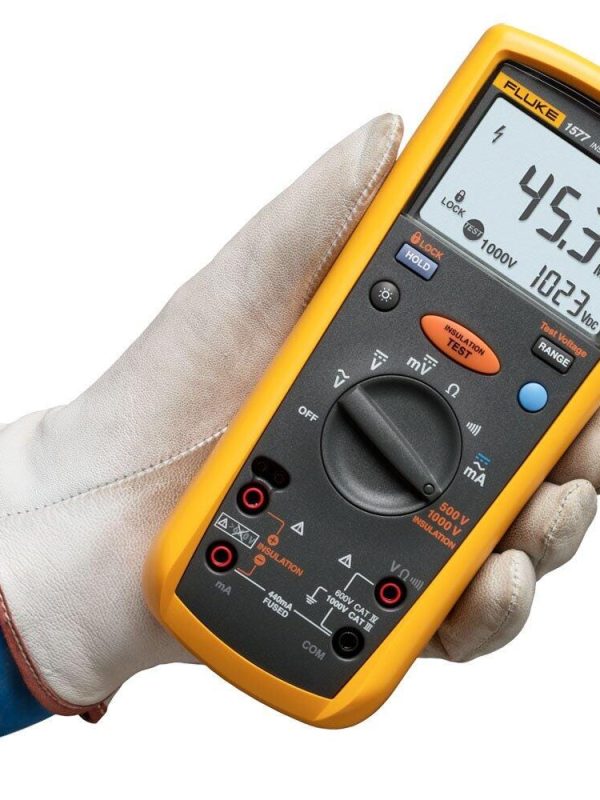

Fluke 1577 Insulation Multimeter

The Fluke-1577 Insulation Multimeter combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit.

,
(1 customer review)
SKU:337

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Original price was: AED 2,995.Current price is: AED 2,825. (excl.VAT)

2 in stock

Compare
12People watching this product now!

Fluke 1577 Insulation Multimeter

The Fluke 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.

Whether you work on motors, generators, cables, or switch gear, the Fluke-1577 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.

Fluke-1577 Insulation Multimeter Unboxing Video

Fluke 1577 Features

  • Auto discharge of capacitive voltage
  • AC/DC voltage
  • DC millivolts
  • AC/DC milliamps
  • Continuity
  • Auto power off to save battery power
  • True RMS
  • Large display with backlight
  • Live circuit detection prevents insulation tests if voltage <30 V is detected for added user protection
  • CAT III 1000V, CAT IV 600V measurement category
  • Accepts magnetic hanging system to free your hands for other work (sold separately)
What is the Fluke 1577 used for?

The Fluke-1577 is a digital insulation multimeter (DMM) designed for professional use in electrical maintenance and troubleshooting applications. It is mainly used to measure and test insulation resistance, in addition to performing the functions of a standard digital multimeter.

Can you use a multimeter to test insulation resistance?

Testing insulation resistance usually requires a specialized instrument known as an insulation resistance tester or megohmmeter (commonly referred to as a “megohmmeter”). The Megohmmeter is specifically designed to measure high resistance values ​​commonly encountered during insulation testing of electrical conductors, cables, and equipment.

Using a multimeter to measure insulation resistance is both inaccurate and unsafe as multimeters are not designed for this purpose and attempting to do so could damage the multimeter and give inaccurate results. To test insulation resistance, it is essential to use appropriate equipment, such as a specialized insulation resistance tester or megohmmeter, which can apply a high voltage to the insulation and accurately measure the resulting resistance. These devices are designed with the safety features and voltage ranges required to handle insulation testing safely and efficiently.

Similar Products

Applications

  • Troubleshooting
  • Preventative maintenance

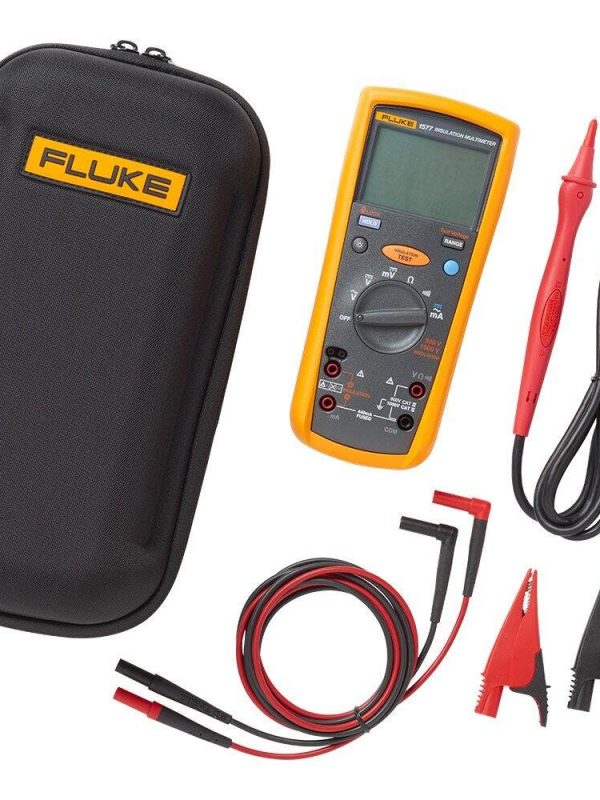

What’s included with the Fluke 1577
  • Multimeter
  • Remote Probe
  • Test Leads
  • Alligator Clips
  • Carrying Case
  • User Documentation
  • Three-Year Warranty
more information

MME-AE is a renowned importer and distributor of multimeters in Dubai and various other countries, providing the most competitive prices in the market. For purchasing a Multimeter and obtaining detailed pricing information, we encourage you to get in touch with our knowledgeable experts at MME-AE.

Specifications Of Fluke 1577 Insulation Multimeter

  • Maximum voltage DC: 1000 V
  • Maximum voltage AC: 1000 V
  • IP rating: IP40
  • Weight: 624 g
  • Size: 203 x 100 x 50 mm (with holster)
  • Storage temperature: -40°C to +60°C
  • Operating temperature: –20°C to +55°C
Accessories
  • Carrying Cases
  • Test Leads
  • Test Probes
  • Other
  • Current Clamps
  • Lights
  • Carrying Case
  • Adapters
  • Temperature
  • Clips
5
1 review
1
0
0
0
0

1 review for Fluke 1577 Insulation Multimeter

Clear filters

  1. Mehmet –

    With high accuracy Insulation Multi meter.

    0
    0
Add a review

Brand

Fluke

Fluke Corporation

Since its founding in 1948, Fluke has helped define and grow a unique technology market, providing testing and troubleshooting capabilities that have grown to mission critical status in manufacturing and service industries. Every new manufacturing plant, office, hospital, or facility built today represents another potential customer for Fluke products. From industrial electronic installation, maintenance and service, to precision measurement and quality control, Fluke tools help keep business and industry around the globe up and running. Typical customers and users include technicians, engineers, metrologists, medical-device manufacturers, and computer network professionals — people who stake their reputations on their tools, and use tools to help extend their personal power and abilities.

Data Sheet

Data Sheet

Read more

Specifications

Installation And Test
Test voltage(range/resolution/accuracy)

1000V, 500V

Electrical Specifications
AC voltage range/resolution/accuracy

DC voltage range/resolution/Accuracy

AC current range/resolution/Accuracy

DC current range/resolution/Accuracy

400 mA/0.01 mA/±(1.0%+2)

Resistance Range/resolution/Accuracy

50 MΩ/0.1Ω/±(1.2%+2)

Mechanical and General Specifications
Dimensions

203 x 100 x 50 mm

Weight

624 g

IP rating

IP 40

Operating temperature

-20 to +50 °C

Storage temperature

-40°C to +60°C

Operating altitude

2000 m
