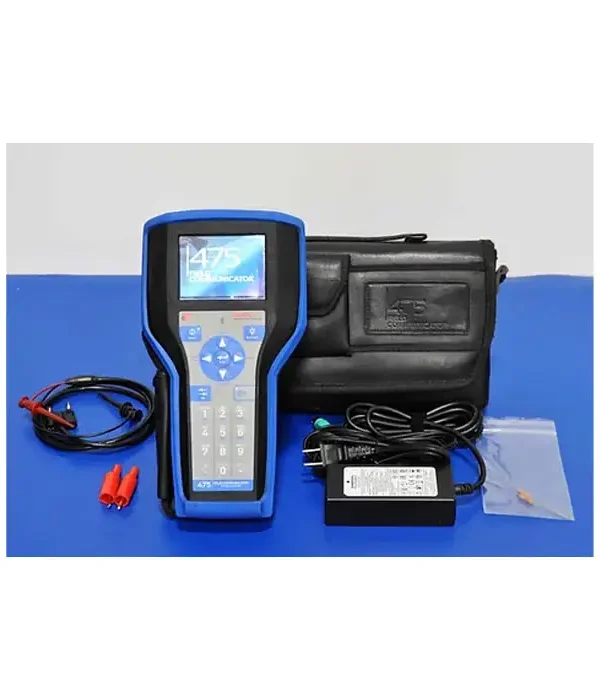

Emerson 475 Field Communicator

The EMERSON 475 Field Communicator is designed to simplify your work in the field. The intuitive color user interface allows you to take advantage of similar methods for HART and Foundation Fieldbus devices. It has a larger touchscreen than a PDA or a Pocket PC, supports HART Versions 5, 6, and 7 devices (including WirelessHART™), and allows you to upgrade your 475 Field Communicator on-site over the Internet.

Key Features of the Emerson 475 Field Communicator

• Universal Device Compatibility: The 475 Field Communicator supports communication with a wide range of field devices, making it versatile for use with nearly any system. It works with all HART, WirelessHART, and FOUNDATION fieldbus devices, ensuring comprehensive coverage and utility.
• User-Friendly Interface: Equipped with a full-color graphical user interface, the Emerson 475 allows for easy navigation and viewing of device parameters and settings. The touch screen and keypad operation facilitate efficient on-site adjustments and configurations.
• Robust Construction: Designed for use in harsh industrial environments, the 475 Field Communicator is built to withstand the challenges of field work, including dust, moisture, and extreme temperatures.
• Long Battery Life: The device is powered by a rechargeable lithium-ion battery, offering long-lasting performance capable of enduring extended periods in the field without needing a recharge.
• Advanced Diagnostics and Troubleshooting: The 475 provides detailed diagnostics and troubleshooting capabilities that help quickly identify and resolve issues with field devices, reducing downtime and improving system reliability.

Applications of the Emerson 475 Field Communicator

• Configuration and Calibration: Technicians use the 475 to configure and calibrate devices directly in the field, adjusting settings to match process requirements precisely.
• Troubleshooting and Maintenance: The device is an indispensable tool for routine checks and maintenance operations, providing essential diagnostics to ensure all field devices are functioning correctly.
• System Integration and Testing: During system upgrades or new installations, the 475 is used to test and verify the communication and operation of all connected field devices.
• Data Management: The communicator can log and manage device data, which can be uploaded to other systems for analysis, further enhancing its utility in preventive maintenance and operational strategies.

Benefits for Field Technicians and Engineers

1. Increased Productivity: The Emerson 475 Field Communicator makes it easier and faster for technicians to set up and troubleshoot devices, significantly enhancing field productivity.
2. Enhanced Accuracy: By providing precise control over device configurations and diagnostics, the 475 ensures higher accuracy in system operations and measurements.
3. Operational Efficiency: With its comprehensive device compatibility and robust performance, the 475 reduces the need for multiple tools and equipment, simplifying the technician’s toolkit and improving efficiency in the field.
4. Reliability in Harsh Environments: Its durable design means that the 475 can reliably perform in the demanding conditions typically found in industrial settings, ensuring dependable performance when it’s needed most.

EMERSON 475 Specifications:

Processor And Memory

• Microprocessor: 80 MHz Hitachi® SH3
• Memory Internal Flash: 32 MB
• System Card: 1 GB secure digital card
• RAM: 32 MB

Physical

• Weight: Approximately 1.65 lb. (0.75kg) with battery
• Display: 1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touchscreen
  Anti-glare coated
• Keypad: 25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key, and
• 4 cursor-control (arrow) keys; membrane design with tactile feedback
• Power Supply / Charger
• Battery: Rechargeable Lithium-Ion power module
• Battery Operating Time: 20 hours – continuous use 40 hours – typical use 80 hours – standby mode

• Battery Charger Options: Input voltage 100-240 VAC, 50-60 Hz Cables included with U.S., Europe, and U.K. plugs

Power Supply / Charger

• Battery Rechargeable Lithium-Ion power module
• Battery Operating Time 20 hours – continuous use 40 hours – typical use
  80 hours – standby mode
• Battery Charger Options Input voltage 100-240 VAC, 50-60 Hz Cables included with U.S., Europe, and U.K. plugs
