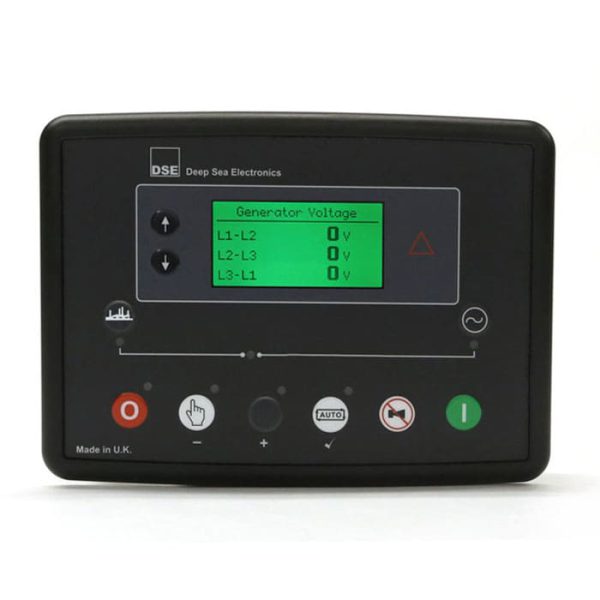

DEEPSEA DSE6110 MKIII Auto Start Control Module

The DSE6110 MKIII is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, genset applications.The module includes USB connection and dedicated DSENet terminals for system expansion.

DEEPSEA DSE6110 MKIII Auto Start Control Module Specifications:

OUTPUT A & B (FUEL & START):10 A DC at supply voltage
NON-HEATED DISPLAY VARIANT:-30°C to +70°C,-22 °F to +158 °F
HEATED DISPLAY VARIANT:-40 °C to +70 °C,-40 °F to +158 °F
FREQUENCY RANGE:10,000 Hz (max)
VOLTAGE RANGE:15 V to 415 V AC (Ph to N)
OVERALL SIZE: 216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)
PANEL CUTOUT SIZE: 184 mm x 137 mm (7.2” x 5.3”)
MAXIMUM PANEL THICKNESS: 8.0 mm (0.3”)
WEIGHT: 0.5kg
PRODUCT VARIANTS: 6110-05 – 6110 MKIII Auto Start Control Module
KEY BENEFITS: Provides multiple installation options
KEY BENEFITS: Provides true generator sensing
KEY BENEFITS: Adds increased flexibility to the product
KEY BENEFITS: Simple breaker control at the touch of a button
KEY BENEFITS: Ensures the control module can be used with the latest in modern electronic engine technology
