Specification Of Deepsea 8680
Specification Of Deepsea 8680

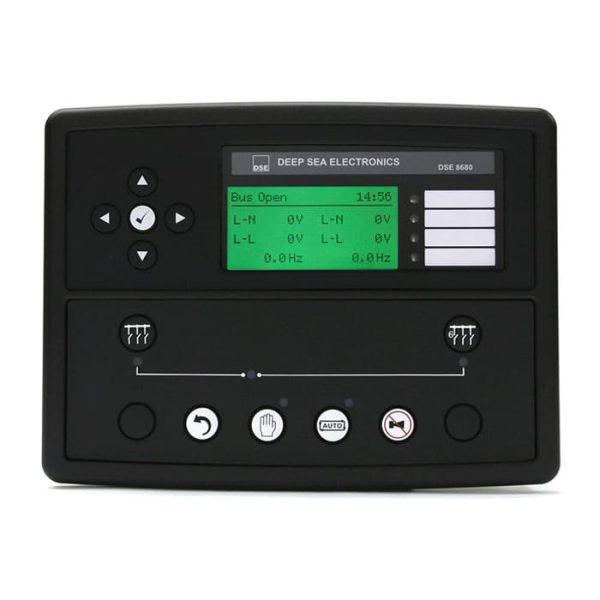

DEEPSEA 8680 Powerful Generator Bus Tie Control Module

DEEPSEA 8680 Synchronising Generator Bus Tie Control Module Key Features :
• Connects to two DSE MSC links,one for ‘bus 1’ and another for bus 2’
• Advanced integral PLC editor
• 11 Configurable inputs
• 8 Configurable outputs
• User configurable RS232, RS485 and Ethernet communications
• Remote SCADA monitoring vi various DSE software applications

, ,
(1 customer review)
SKU:8047

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

Compare
11People watching this product now!

DEEPSEA 8680 Synchronising Generator Bus Tie Control Module

DSE8680 is an intelligent control module designed to control generator busbar disconnectors. The control module has technology that automatically manages the time and verifies the time on the circuit breaker using the DSE multi-set communication link when the disconnector is opened and closed.

DEEPSEA 8680 Specifications:

  • ELECTROMAGNETIC COMPATIBILITY: BS EN 61000-6-2 EMC Generic Immunity Standard for the Industrial Environment BS EN 61000-6-4 EMC Generic Emission Standard for the Industrial Environment
  • ELECTRICAL SAFETY: BS EN 60950 Safety of Information Technology Equipment, including Electrical Business Equipment
  • SHOCK: BS EN 60068-2-27 Three shocks in each of three major axes 15gn in 11mS
  • OPERATING TEMPERATURE RANGE:-30 C to +70C
  • STORAGE TEMPERATURE RANGE:-40 C to +85 C
  • FREQUENCY RANGE:3.5 Hz to 75 Hz
  • MAXIMUM STANDBY CURRENT:50 mA at 12 V, 30 mA at 24 V
  • OUTPUTS C & D:8 A at 250 V AC (Volt free)
  • SHOCK: BS EN 60068-2-27 Three shocks in each of three major axes 15gn in 11mS DEGREES OF PRO
5
1 review
1
0
0
0
0

1 review for DEEPSEA 8680 Powerful Generator Bus Tie Control Module

Clear filters

  1. mike –

    Great product, works as advertised

    0
    0
Add a review

Brand

Deep Sea

Deep Sea

Deep Sea Electronics is one of the world’s top manufacturers of generator controllers, auto transfer switch controllers, battery chargers and vehicle & off-highway controllers. Deep Sea employs over 200 people across four continents and sell their products to 150 countries direct from their UK head office and through their comprehensive distributor network. They never stop generating ideas for new products and are always looking at ways to improve. The integration of technology and the benefits it creates drives them to succeed. They want to make their products work better for our customers and have a research and development team constantly working to achieve this.

dse brand

DATA sheet

Data Sheet

Read more

Specifications

Transfer switch control modules
AUXILIARY OUTPUTS C, D, E & F

2 A DC at supply voltage

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAXIMUM OPERATING CURRENT

150 mA at 12 V, 80 mA at 24 V

MAXIMUM PANEL THICKNESS

8 mm

MAXIMUM STANDBY CURRENT

50 mA at 12 V, 30 mA at 24 V

PANEL CUT-OUT

220 mm x 160 mm

VOLTAGE RANGE

15 V to 333 V AC (L-N)

size

240 mm x 181 mm x 42 mm
