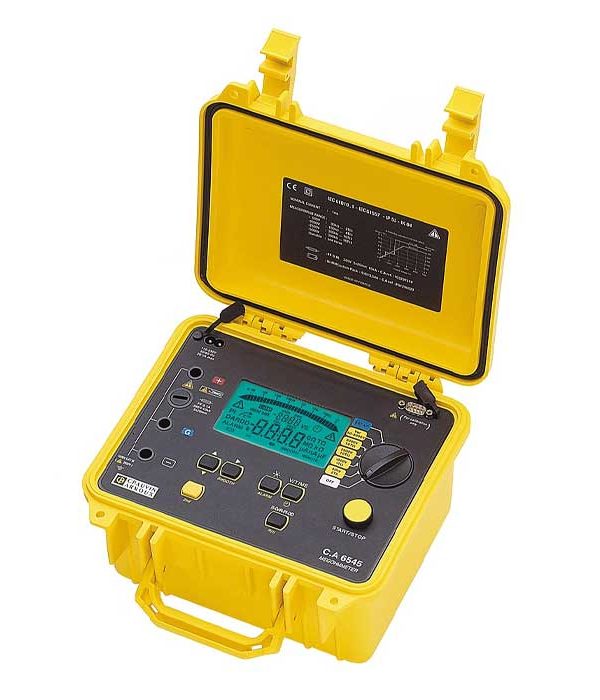

Chauvin Arnoux CA6545 5kV Megohmmeter

The Chauvin Arnoux CA6545 Insulation Resistance Tester is an effective tool for measuring the insulation resistance of electrical systems and devices. It is intended to assist electricians and technicians in ensuring the safety, dependability, and proper operation of electrical systems.
The C.A. 6545 megohmmeter can be used for quantitative and qualitative insulation analysis in its site-proof housing. It also measures voltage, capacitance, and residual current automatically.

Accuracy is one of the most significant features of the Chauvin Arnoux CA6545 Insulation Resistance Testing. It measures the insulating resistance of electrical systems and equipment precisely, guaranteeing that they perform as intended.

Safety: Testing for insulation resistance is critical for guaranteeing the safety of electrical systems and devices. The Chauvin Arnoux CA6545 Insulation Resistance Testing can assist discover potential safety concerns and avoid accidents by testing insulation resistance.

The Chauvin Arnoux CA6545 Insulation Resistance Testing is a quick and efficient method of measuring insulation resistance. It can swiftly test various circuits and devices, saving electricians and technicians time and effort.

Chauvin Arnoux CA 6545 Insulation Tester Specifications

• Measurement range: 10 kΩ to 10 TΩ
• 4 fixed test voltages: 500 / 1,000 / 2,500 and 5,000 V
• Adjustable test voltage position: 40 to 5,100 V in 10 V or 100 V increments
• Large backlit LCD screen with digital display and bar graph
• Quantitative insulation analysis: DAR, PI, and DD (dielectric discharge) quality ratios are calculated automatically, and R(t) stored
• A large number of functions: programmable test duration, test voltage locking, smooth function, programmable alarms, etc.
• Power supply: NiMH rechargeable battery for 30 days’ operation with 10 DAR measurements and 5 PI measurements per day
• Electrical safety: IEC 61010-1 Cat.III 1000V or Cat. I 2500V and IEC 61557
• Dimensions: 270 x 250 x 180 mm; weight: 4.3 kg

Accessories

• Molded test probes CAT 4 1 kV RD/BK
• Molded test probes CAT 4 1 kV RD/BK
• C.A 1246 THERMO-HYGROMETER
• C.A 1821 TC THERMOMETER 1 INPUT K J T E
