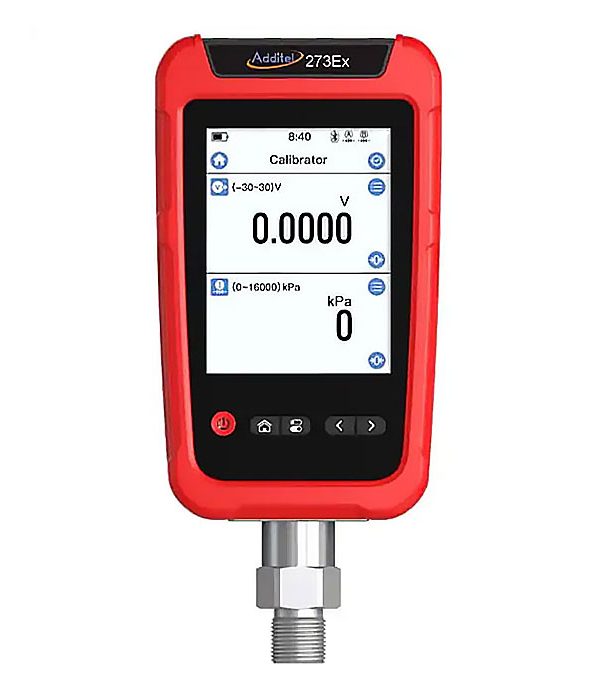

Additel 273Ex Handheld Pressure Calibrator

Additel 273Ex Handheld Pressure Calibrator is a powerful and adaptable tool developed for usage in hazardous areas. It is intended for measuring pressure and temperature as well as calibration operations in a variety of applications.

The Additel 273Ex is a portable multipurpose pressure calibrator featuring an intrinsically safe colour touchscreen, smartphone-like interface, built-in rapid test activities, and optional HART communications connectivity. This ground-breaking Additel product significantly enhances explosion-proof field testing and calibration. The Additel 273Ex includes an air pressure sensor, making absolute pressure and gauge pressure measurements simple. With three pressure module inputs, one switchable at the bottom and two digital on the side, the user may simply adjust the system to satisfy the pressure calibration and testing demands in nearly any situation.

The adaptability of the Additel 273Ex Handheld Pressure Calibrator is one of its key advantages. This device can measure pressure in a variety of units, including psi, bar, kg/cm2, and many more. It also measures temperature in both Fahrenheit and Celsius, making it an ideal instrument for a wide range of applications.

The mobility of the Additel 273Ex Handheld Pressure Calibrator is another advantage. This instrument is tiny and lightweight, making it simple to transport wherever you go. It also includes a rechargeable battery, so you may use it in the field without worrying about running out of juice.

Additel 273Ex Handheld Pressure Calibrator FEATURES:

• FS Accuracy is 0.02% to 0.05%.
• Internally Secure
• Pressure Module with Field Switchability
• Inputs for a Dual Digital Pressure Module
• Touchscreen Display in Colour
• Integrated Quick Test Task Feature
• Integrated Barometer
• Smartphone-like User Interface
• Bluetooth and USB connectivity
• HART communication is optional.
• Connects to Additel’s Link Mobile App.
• ISO 17025 calibration with data included

Additel 273Ex Handheld Pressure Calibrator Specifications:

• Operating temperature:-20 ~ 50°C
• Storage temperature:-30 ~ 70°C
• Humidity: 0% to 95% RH, non-condensing.
• Altitude: 3000 meters
• Size 6.97″ x 4.13″ x 2.04″ (177 mm x 105 mm x 52 mm) which doesn’t include bottom ADT158Ex.
• Weight 1.98 lb (0.9 kg)
