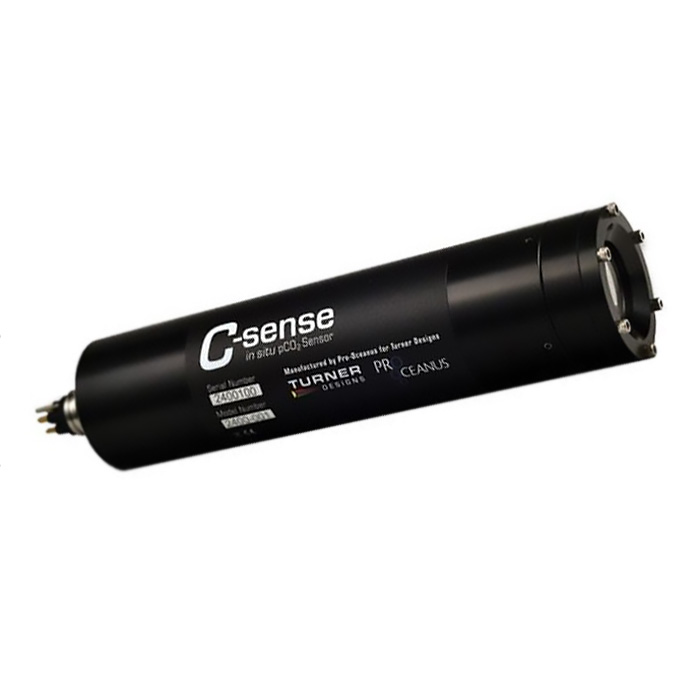

Turner Designs C sense in situ pCO₂ Sensor

The Turner Designs C sense In Situ pCO₂ Sensor could be a capable gadget that researcher utilise to a precise degree and screen the carbon dioxide (CO₂) levels in water bodies. This inventive apparatus plays a pivotal part in understanding the natural effect of CO₂ on aquatic ecosystems.

Carbon dioxide could be a gas that usually happens within the discussion and water. Over-the-top CO₂ concentrations can adversely affect aquatic life and disturb the ecosystem’s fragile adjust.

The Turner Designs C sense In Situ pCO₂ Sensor is accurately an advanced apparatus planned to identify and degree carbon dioxide in water. It is mainly built for in-situ (in its unique put) checking, meaning it can be sent straightforwardly into the water environment for persistent estimations.

The C-sense In Situ pCO₂ Sensor works based on the rule of gas equilibration. It utilizes a semi-permeable layer that permits CO₂ to pass through, making a balance between the CO₂ within the water and the inside gas sensor. This equilibration empowers the sensor to precisely degree the pCO₂ (halfway weight of CO₂).

Researchers send the Turner Designs C sense In Situ pCO₂ Sensor by inundating it straightforwardly into a body of intrigue. The sensor is carefully situated to guarantee ideal CO₂ estimation. It persistently collects information on pCO₂ levels, giving profitable bits of knowledge into the varieties and patterns of CO₂ concentration over time.

The information collected by the Turner Designs C sense In Situ pCO₂ Sensor offers profitable data on almost the carbon dioxide flowing inside the water environment. By analyzing the comes about, researchers can survey the impacts of CO₂ on the well-being of sea-going living beings, recognize potential sources of CO₂ input, and assess the generally natural quality.

Turner Designs C sense in situ pCO₂ Sensor specifications:

• Available in 4 standard measurement ranges:
  – 1,000ppm
  – 2,000ppm
  – 4,000ppm
  – 10,000ppm
  – other ranges available
• Accuracy 3% of full scale
• Submersible to 600m
• Easily integrated: 4-pin analog output
• Small size: <2” x 8” and <1lb
• Temperature Range:
  -Water Temp: -2 to 35C
  -Ambient Temp: -20 to 50C
• Depth Range: 600 meters
• Signal Output: 0-5V DC
• Supply Voltage: 6-12V DC
• Power Consumption: 80mA @ 6 VDC (100mA during warm-up)
• Detector Warm-up Time: 45 sec – 3 min
